ComAp InteliVision 12Touch RD1IV12TBZH 12.1" Colour Display Unit Controller

12.1" Colour Display Unit

Order code: RD1IV12TBZH

ComAp InteliVision 12Touch Colour Display Unit Datasheet.pdf

Genuine ComAp RD1IV12TBZH InteliVision 12 Touch Colour Display Unit Controller

Features for ComAp InteliVision 12 Touch RD1IV12TBZH Colour Display Unit Controller:

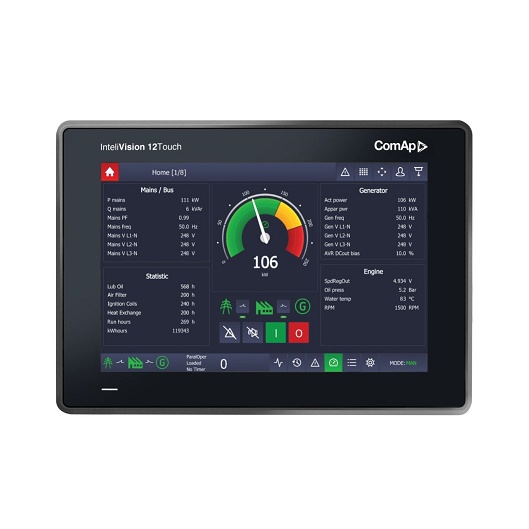

InteliVision 12Touch, industrial operator panel equipped with 12,1” colour, multi-touch screen, is dedicated together with the main ComAp controller to visualise and control single gen-set in various applications.

• 12,1" colour, multi-touch      screen, TFT display unit with resolution of 1280 x 800 pixels

• Touch based Graphical User Interface,      support for multi-touch gestures

• Plug and Play operation (auto      configuration based on controller application)

• Supported controllers :

• InteliGen GSC

• InteliGen GSC-C

• InteliSys GSC-C

• InteliGen NT BaseBox

• InteliGen NTC BaseBox

• InteliSys GAS

• InteliSys NTC BaseBox

• InteliSys NTC Hybrid

• InteliMains NTC BaseBox

• InteliDrive Mobile from SW version       2.6.0

• Complete access to all      control and monitoring functions

• Fast and intuitive navigation

• Extended trends monitoring screen

• USB flash disk file storage      (export/import trends, history, archive of controller and      InteliVision 12Touch firmware and others to USB stick)

• User’s pictures import

• Adaptive alarm list

• Large History screen

• Adjustable setpoints help

• Multilanguage support

• Communication connection via RS-485,      CAN or Ethernet

• Integrated easy to use mounting system

• Designed to be mounted in both      monitoring and engine room

• Industrial and robust design

• Rugged housing manufactured from a      single piece of aluminium alloy

• Chemically strengthened front glass (8      times as strong as normal glass)

• Sun-readable display (1000 cd/m2)

• Automatic brightness control

• Operating temperature: –30 to + 70°C

• Face is sealed to IP65

• EMC, climatic and mechanical tests

• CE,      UL and cUL certification
