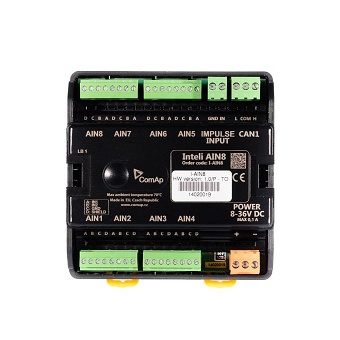

ComAp Inteli AIN8 8 Analog Input Module

ComAp Inteli AIN8 8 Analog Input Channels and 1 RPM Impulse Input Module

Order code: I-AIN8

ComAp Inteli AIN8 8 Analog Input Channels and 1 RPM Impulse Input Module Datasheet.pdf

Genuine ComAp Inteli AIN8 8 Analog Input Channels and 1 RPM Impulse Input Module with wholesale price.

Features for ComAp 8 Analog Input Channels 1 RPM / Impulse Input Module Inteli AIN8:

ComAp’s Inteli AIN8 module allows users to expand the amount of analog inputs for sensors and add Impulse/RPM input that can be attached to a controller. Up to 8 configurable inputs (sensors) can be attached to the controller, and up to ten (depending on the controller firmware) of the Inteli AIN8 modules can be connected to InteliSys NT, InteliGen NT, InteliMains NT controllers (up to four in case InteliDrive DCU controller).

Analog inputs:

Supported sensors:

• Resistor 3-wire input

• Common resistor:       0-250Ω, 0-2400Ω, 0-10kΩ

• Temperature sensor: Pt100, Pt1000, Ni100,       Ni1000

• Current (active or      passive sensors)

• ±20mA , 0-20mA, 4-20mA

• Voltage

• ±1V, 0-2,4V, 0-5V, 0-10V

• Lambda probes

• Thermocouples are       not supported (the       measuring loop was designed for lambda probes, what caused non-support of       thermocouples)

Impulse/RPM sensor:

• RPM measuring pulses with      frequency  4Hz – 10kHz

• Impulse

• Possibility to       measure pulses from electrometer, flowmeter (measurement of total       consumption, average fuel consumption)

The Inteli AIN8 is determinate for the InteliSys NT, InteliGen NT, InteliMains NT and InteliDrive DCU controllers.
