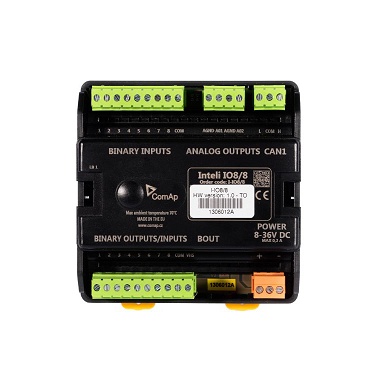

ComAp Inteli IO8/8 Binary Inputs Outputs and Analog Outputs Module

ComAp Inteli IO8/8 Binary Inputs Outputs Analog Outputs Module

Order code: Inteli IO8/8

Genuine ComAp Inteli AIN8 8 Analog Input Channels and 1 RPM Impulse Input Module with wholesale price.

ComAp Inteli IO8 8 Module Datasheet.pdf

Features for ComAp Binary Inputs Outputs Analog Outputs Module Inteli IO8/8:

The extension module Inteli IO8/8 offers users more binary inputs and outputs for ComAp controllers. The unit offers the user the flexibility to configure the unit to have 8 binary inputs, 8 binary outputs, and 2 analog outputs, or 16 binary inputs, 0 binary outputs and 2 analog outputs via switches inside the controller. The Inteli IO8/8 is compatible with the InteliDrive DCU, InteliMains NT, InteliGen NT, InteliSys NT, InteliGen GSC, InteliSys GSC and IL3 based controllers.

Module is possible to configure (by switch on board) to two configurations:


1) Configuration 8/8

• 8 Binary inputs (options: pull up or pull down logic)

• 8 Binary outputs (options: Low side switch (LSS) or High side switch      (HSS))

• 2 Analog outputs (options: voltage (0-10V), current (0-20mA) and PWM      (5V, adjustable frequency 200Hz-2,4kHz))

2) Configuration 16/0

• 16 Binary inputs (options: pull up or pull down)

• 0 Binary outputs

• 2 Analog outputs (options: voltage (0-10V), current (0-20mA) and PWM      (5V, adjustable frequency 200Hz-2,4kHz))

• Up to 12 Inteli IO8/8 module (in configuration 8/8) can be connected      to the controller (InteliSys NT / InteliGen NT / InteliMains NT)

• Up to  6  Inteli IO8/8 module (in configuration 16/0) can      be connected to the controller (InteliSys NT / InteliGen NT / InteliMains      NT)

• Up to  4  Inteli IO8/8 (in configuration 8/8) can be      connected to the InteliDrive DCU controller.

• LED indication of each Binary input/output

• Safety function of Binary output: Regular reading of the real state      of the Binary output

• All settings are carried onboard switch or electronically (No      jumpers)
