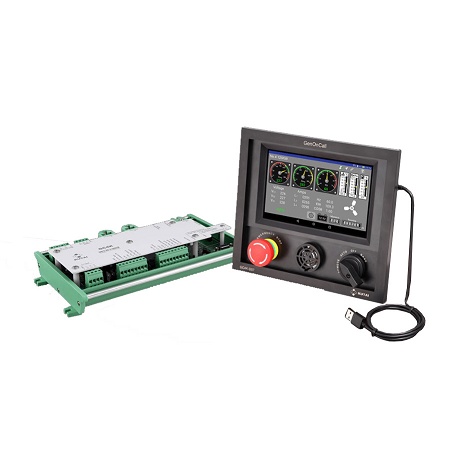

Kutai GCU-4K GCU4K Generator Genset Controller

Genuine Kutai GCU4K GCU-4K Generator Controller with wholesale price.

Auto Start Generator Control & Protection Module with Remote Monitoring & Control

Kutai GC4K Controller Brochure.pdf

The GCU-4K Kutai Genset Controller is an Auto Start Genset Control & Protection system using IOT and cloud technology to provide complete remote monitoring and control of diesel and gas gensets through a mobile phone or tablet computer with the KUTAI GenOnCall® app for Android and iOS.

A cell phone or tablet computer connects to the controller through the KUTAI server enabling an Operator and Viewers to view real time displays of all engine and alternator parameters, an Event Log and a map display with unit locations. GenOnCall® also receives push-notification of Warnings and Events (Start/Stop). Remotely start and stop gensets. An Engine Start warning is broadcast onsite before engine cranking to avoid injury to personnel. Standard Engine Start Warnings are offered in multiple languages, as well as allowing a self-recorded voice warning.

GenOnCall® receives notifications from the controller if battery power is removed or theft by lifting. Built-in GPS location tracks the position of all generators in real-time on Google Maps. Perfect for managing rental units at scattered locations.

Internet connection with the KUTAI cloud server is achieved through WiFi, dynamic IP (Ethernet) connection, or a 3G/4G/5G mobile router. When connected to the internet a simple procedure is all that is required to access control and monitoring functions.

System parameter settings can be input through the color, touch-screen LCD control panel. Optional KCU- modules are available for RS-485, ModBus RTU and SNMP protocols.

Features

Engine block heater control for use in cold climates

High-precision Ceramic Capacitive oil pressure anddigital coolant temperature sensors are standard

7-inch IPS display panel with resolution 1280x800 and front panel meets IP65

User-friendly, intuitive touch-screen interface to input all settings

Integrated, modular design control panel with Mode Selector Switch, Emergency Stop Button, and Alarm Speaker

Digital and Analog gauge displays for all electrical parameters

Wi-Fi, 3G/4G/5G Mobile Router and physical Ethernet network connections

Free iOS and Android GenOnCall® App download enables remote operation,monitoring and configuration for smart phone or tablet

Choice of Chinese, English, Spanish language display

Engine Start Voice Warning broadcast in ten most common languages – also allows for user recorded engine start voice warnings

Free online updates of controller firmware and GenOnCall® apps

Provides generator location services (GPS)

Push notification for Engine Start / Stop and Fault Alarms – records up to 250 events

Real-time graphic display of AC current and voltage curves

Transfer Settings function (dump function) eliminates need to program each controller individually

Supports Modbus / SNMP / RS-485 protocols (via optional modules)

Allows for one Operator and up to seven Viewers to connect simultaneously for remote monitoring and control

Battery power removed and Genset position Shifted alarm for theft alert

Two user-defined outputs and inputs for control or protection
