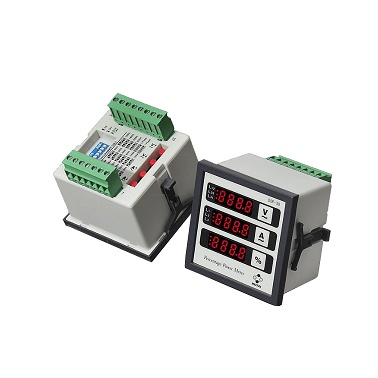

Kutai DSP-30 DSP30 Percent Power Meter

Kutai Genset Percent Power Meter

Genuine Kutai DSP30 DSP-30 Generator Percent Power Meter with wholesale price.

Kutai DSP-30 Percent Power Meter Brochure.pdf

Compact in size with easy to read LED display, the DSP-30 is a unique Percent Power Meter specially developed for generators industry, with purpose to assist user to easily monitor the percentage of load power consumption and RMS value of full phase AC voltage and load current.

Features

First and only percent power meter specially designed for genset

Three sets four digits high illumination LED display, suitable for outdoor use

Microprocessor based design

Full phase AC voltage RMS value display

Full phase load current RMS value display

Display percentage of load power consumption (KVA)

Configurable cyclic display of full phase voltage and current values

Compact, Anti-shock, Easy installation

DIN rail terminal for easy connection

Four adjustable voltage and current push buttons

Five DIP switches for specification setting

Specifications

DC Supply   DC Voltage 9 to 36 Vdc (12V/24V)

Alternator Input Range    AC Voltage 10 to 500 Vac

Frequency 50/60 Hz

Power Consumption Under 2 watts

Rated CT Capacity    Above 2.5 VA

CT Secondary Ratio  5A

Max. CT Rated    3000A / 5A

Environment

Operating Temperature   -20 to +60 °C

Storage Temperature       -35 to +85 °C

Relative Humidity      Max. 90%

Physical Specifications

Panel Cut-Out    66.0 x 66.0 +/-0.5 mm

Dimension   72.0 (H) x 72.0 (W) x 50.0 (D) mm

Weight  200 g +/-2%
