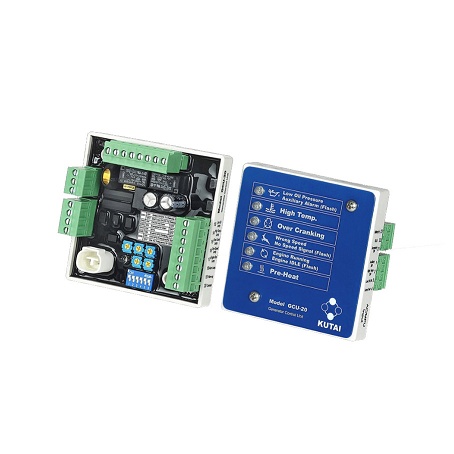

Kutai GCU-20 GCU20 Automatic Genset Generator Control Unit

Kutai Automatic Engine and Generator Control Unit GCU-20 GUC20

Genuine Kutai GCU20 GCU-20 Generator Control Unit with wholesale price.

Kutai GCU-20 GCU20 Generator Control Unit.pdf

Features for Kutai GCU-20 Automatic Generator Control Unit

Microprocessor based design

Universal LED graphic interface, displays generator status and failures

Modular design, quick installation

With annunciator alarm output

Selectable MPU signal for speed sensing

Suitable for pump engine control

With lamp test function for all front panel LEDs and annunciator lamps

Provide IDLE control for Elec. governors

Five adjustable time delay potentiometers

Six DIP switches for setting different engine parameters

Specifications for Kutai GCU-20 Automatic Engine Control Unit

DC Supply   Voltage 9 to 36 Vdc

Alternator Input Range    Voltage 5 to 300 Vac

Frequency 50/60 Hz

MPU Signal Input Range +/-2V to 70V Peak

Rated MPU Frequency     100 to 10,000 Hz

Fuel Solenoid Signal Output  10 Amp @ 12/24 Vdc

Start Signal Output   10 Amp @ 12/24 Vdc

Annunciator Output 300 mA @ 12/24 Vdc

Power Consumption Under 3 watts

Protection and Alarm

Status Indicators Start Failure

High Water Temp.

Low Oil Pressure

No Speed Signal

Overspeed

Underspeed

Extra Prog. Input

Adjustable Timers

Engine Pre-Heat 2 to 30 seconds

Starter Cranking Time       1 to 15 seconds

Energize to STOP      1 to 15 seconds

Engine Idle (Governor)    0 to 300 seconds

Engine Cool-Down   0 to 300 seconds

Environment

Operating Temperature   -20 to +60 °C

Storage Temperature       -35 to +85 °C

Relative Humidity       Less than 90%

Physical Specifications

Dimensions 88.0 (L) x 88.0 (W) x 37.5 (H) mm

Weight  206 g +/-2%
