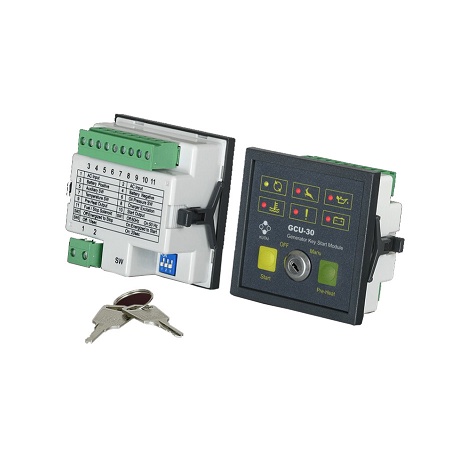

Kutai GCU-30 GCU30 Manual Key Start Genset Generator Control Unit

Kutai Manual Key Start Genset Control Unit GCU-30 GUC30

Genuine Kutai GCU30 GCU-30 Generator Control Unit with wholesale price.

Features:

Microprocessor based design

LED status indicator with graphic interface

Modular design with easy installation

UV protection with minimum waterproofing (IP51)

Charge alternator failure protection

Start and Pre-Heat function push button

Three DIP switches for configuration

Suitable for most available genset on the rental market

Specifications:

DC Supply   9 to 36 Vdc

Rated AC Input Voltage   5 to 300 Vac

AC Frequency    50/60 Hz

Fuel Solenoid Signal Output  1.2 Amp @ 12/24 Vdc

Start Signal Output   1.2 Amp @ 12/24 Vdc

Preheat Signal Output       1.2 Amp @ 12/24 Vdc

Charge Motor Excitation Signal Output     12/24 Vdc

Power Consumption Under 3 watts

System Setting        ON  OFF

SW1 AC Frequency Setting    50 Hz     60 Hz

SW2 Stop Mode Energized to Start     Energized to Stop

SW3 Engine Stop Timer Delay      20 seconds  10 seconds

Protection and Alarm Status Indicators

High Coolant Temperature Protection

Low Oil Pressure Protection

Engine Over speed Protection

Charge Alternator Failure Protection

User Define Protection

Environment

Operating Temperature   -20 to +60 °C

Storage Temperature       -40 to +85 °C

Relative Humidity      Less than 90%

Physical Specifications  Panel Cut-Out    66.0 x 66.0 +/-0.5 mm

Dimensions 72.0 (L) x 72.0 (W) x 37.0 (H) mm

Weight  101 g +/-2%
