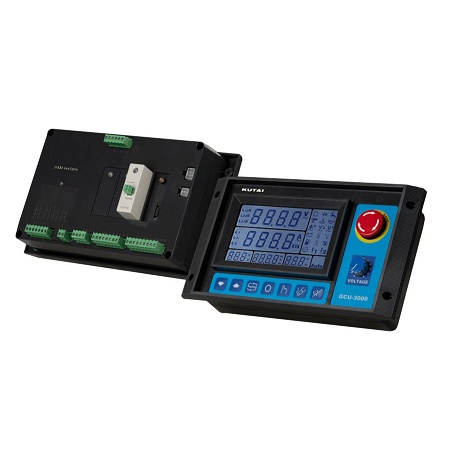

Kutai GCU-3000 GCU3000 Digital Genset PLC Control Unit Controller

Kutai Digital Genset PLC Genset Controller GCU-3000 GUC3000

Genuine Kutai GCU3000 GCU-3000 PLC Generator Control Unit with wholesale price.

Kutai GCU-3000 GCU3000 Digital Genset PLC Control Unit Brochure.pdf

The Kutai GCU-3000 is the advanced Digital Genset PLC Control Unit. It delivers full Genset warning and protection and equipped with most accurate water temperature and oil pressure sensor available on the market. The design is to be operation friendly with extra large easy to read LCD display and graphical warning icons. The module requires no addition connection to a PC, all function settings can be programmed directly on the front panel. It is equipped with optional USB, RS485, and Ethernet remote communication functions to allow remote operation.

Features

Micro-Processor auto control and protection

Easy to read large LCD display

Modularity design, easy to install

Provide accurate temperature and oil pressure display

Provide full engine and generator alarms signals shutdowns

All functions setting can be done directly on GCU-3000 no need for PC connection *1

Provide emergency stop and voltage adjustment on front panel *2

Total of 15 memorable event logs

Optional USB/RS485/Ethernet remote communication functions

J1939 CAN Bus Protocol Available (Option)

Specifications

Power Input Voltage 8 to 60 Vdc (12V/24V)

AC Sensing Input     Voltage 15 to 500 Vac

Frequency 50/60 Hz

Power Dissipating    Max. 7 watts

MPU Signal Input      Voltage +/-2 to +/-70 Vac

Frequency 100 Hz Min. 10K Hz Max.

CT Specification Burden 2.5 VA

Protection and Alarm Status Indicators

Engine Start Failure

Engine Over Speed

Sender Failure

Abnormal AC Voltage

Low Engine Oil Pressure

Emergency Stop Activated

High Engine Temp.

MPU Failure

Generator Over Load

Abnormal Battery Voltage

Large LCD Display

Programmable Display with 3 Phase Volts, Amp & Frequency

Engine Operation Hours & Battery Voltage Display

Can Display Different Unit Of Temperature & Oil Pressure

Failure Signal Status By Graphic Display

Environment

Operating Temperature   -20 to +60 °C

Relative Humidity      Max. 95%

Max. Vibration    5 to 25 Hz +/-1.6 mm, 25 to 100 Hz a=4g

Optional Accessories

Digital Sensor (TS-03)      -25 to +100 °C +/-2.0 °C (Max.)

Thin-Film Sensor (OPS-01)    0 to 100 Psi +/-0.5% (Max.)

Physical Specifications

Panel Cut-Out    250.0 x 156.0 +/-0.5 mm

Dimension   290.0 (L) x 166.0 (W) x 70.0 (H) mm

Weight  1341 g +/-2%
