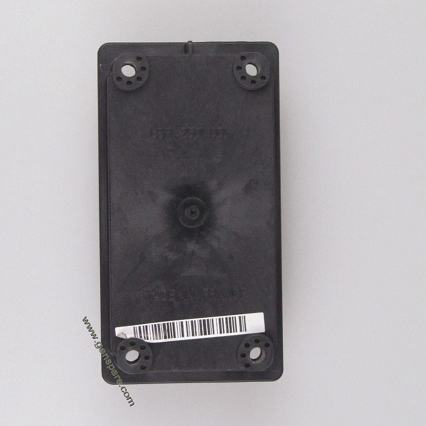

Leroy Somer Voltage Regulator R250 AVR

Leroy Somer R250 AVR Datasheet.pdf

    Leroy Somer R250 Installation and maintenance Manual.pdf

Origin: France

Brand: Leroy Somer

Model: R250

Part Numbers: AEM110RE019, 330410933, R250330410345, 10000-12943

R230 Leroy Somer AVR was discontinued and replaced by R250 now.

Leroy Somer R250 100% original French Voltage Regulator AVR for SHUNT Alternators

SAME EXACT AVR AS:

·         Leroy Somer Voltage Regulator AEM110RE019 AVR

·         SDMO Voltage Regulator 330410933 AVR

·         SDMO Voltage Regulator R250330410345 AVR

·         FG Wilson Voltage Regulator 10000-12943 AVR

·         Olympian Voltage Regulator 10000-12943 AVR

LEROY SOMER R250 AVR FOR SHUNT AlterNATORS

Description

·         Leroy Somer R250 is an analog A.V.R. with numerical regulation function (micro-controler) and power controled by transistors.

·         It is designed for small alternators with a SHUNT excitation.

·         R250 Leroy Somer AVR controls the excitation current in order to maintain the output voltage of the alternator.

·         R250 AVR is performant in terms of voltage regulation, simple to set , to use and is reliable.

·         It is in compliance with I.E.C. 60034-1 standard and U.L. 508 / C.S.A. approved.

·         Operation mode : Standalone

Main feature and characteristics

·         - Voltage regulation : ± 0.5 %.

·         - U/F function.

·         - LAM function.

·         - Quick response : 500 ms.

·         - Nominal excitation current : 5A

·         - Maximum excitation current : 7A during 10 s.

·         - Provide range / voltage detection : 85 to 139 V (50/60Hz).

·         - Protection : fuse 8A.

Operation conditions

·         - Operating temperature range : - 40° C à + 65° C.

·         - Storage temperature range : - 55° C à + 85° C.

·         - Hygrometry : 98%.

·         - Maximum choc : 9 g on 3 axis.

·         - Vibrations : less than 10 Hz , 2 mm peak magnitude.

·         From 10 Hz to 100 Hz : 100 mm/s, below 100 Hz : 8g.

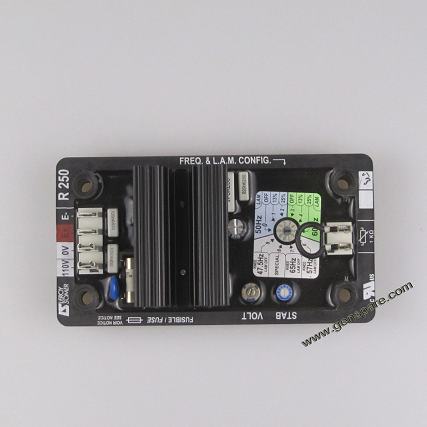

Connexion and setting

·         Settings are done through the A.V.R.

·         - Potentiometer P1 : voltage setting.

·         - Potentiometer P2 : stability setting.

·         - Strap ST3 : frequency selection.

·         - Jumper : frequency, U/F function, LAM function

·         - Potentiometer ST4 : remote voltage setting.
