Leroy Somer Automatic Voltage Regulator R450 AVR

Leroy Somer R450 AVR Installation and maintenance Manual.pdf

Leroy Somer R450 AVR Datasheet.pdf

Origin: France

Brand: Leroy Somer

Model: R450

Part Numbers: AEM110RE031, R450F, AEM110RE016, AEM110RE023, 330411123, 922-124, 10000-47135

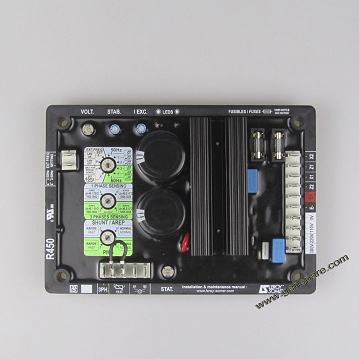

Leroy Somer R450 Voltage Regulator AVR

SAME EXACT AVR AS:

·         Leroy Somer Voltage Regulator AEM110RE031 AVR

·         Leroy Somer Voltage Regulator R450F AVR

·         Leroy Somer Voltage Regulator AEM110RE016 AVR

·         Leroy Somer Voltage Regulator AEM110RE023 AVR

·         SDMO Voltage Regulator 330411123 AVR

·         FG Wilson Voltage Regulator 922-124 AVR

·         FG Wilson Voltage Regulator 10000-47135 AVR

·         Olympian Voltage Regulator 922-124 AVR

·         Olympian Voltage Regulator 10000-47135 AVR

Leroy Somer R450 AVR Voltage Regulator DESCRIPTION:

The R450 Voltage Regular Automatic Voltage Regulator was engineered and is manufactured exclusively by Leroy Somer, a French division of Emerson. Leroy Somer is the world’s largest AC Alternator manufacturer. The Leroy Somer R450, a quality, original product made in France, has a one year international warranty and technical support. This brand new product is in stock and offers same day shipping worldwide.

The R450 offers single phase voltage sensing, and is designed for use with SHUNT/AREP and PMG excitation alternators. A switch on the unit is used to set it for either SHUNT/AREP or PMG use as desired. The AREP excitation is powered by two auxiliary windings that are not incorporated into the voltage sensing circuit. The first, SHUNT, winding’s voltage is about the same as the alternator main voltage. The second winding has voltage that is about the same as the stator current, and provides a booster effect. The power supply voltage is rectified and filtered. PMG excitation supplies the R450 with voltage separate from the main alternator winding, and provides a short-circuit current capacity of 3 IN for 10s. The R450 adjusts the excitation current to monitor the alternator output current.
