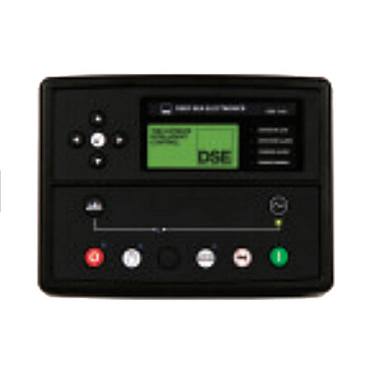

Deep Sea DSE 7410 Generator Controller DSE7410

DSE7410, DSE7420 Product Specification Download.pdf

DSE7410MKII DSE7420MKII Operation Manual.pdf

DSE7410 DSE7410MKII

GENERATOR AUTO START MODULE

The Deep Sea DSE7410 DSE7410MKII Controller is an Auto Start Control Module and the Deep Sea DSE7420 is an Auto Mains (Utility) Failure Control Module suitable for a wide variety of single, diesel or gas, gen-set applications.

A sophisticated module monitoring an extensive number of engine parameters, the DSE 7410 Generator Controller will annunciate warnings, shutdown and engine status information on the back-lit LCD screen, illuminated LED, remote PC, audible alarm and via SMS text alerts. The module includes RS232, RS485 & Ethernet ports as well as dedicated terminals for system expansion.

The Deep Sea DSE7410 DSE7410MKII Generator Controller is compatible with electronic (CAN) and non-electronic (magnetic pick up/alternator sensing) engines and offer a comprehensive number of flexible inputs, outputs and extensive engine protections so the system can be easily adapted to meet the most demanding industry paralleling requirements.

Deep Sea 7410 DSE7410MKII Generator Controller can be easily configured using the DSE Configuration Suite Software.

Selected front panel editing is also available.

KEY FEATURES of DSE 7410 DSE7410MKII DSE7410 MKII Deep Sea Genset Generator Controller:

• Configurable inputs (11)

• Configurable outputs (8)

• Voltage measurement

• Mains (utility) failure detection

• Dedicated load test button

• kW overload alarms

• Comprehensive electrical protection

• RS232, RS485 & Ethernet remote communications

• Modbus RTU/TCP

• PLC functionality

• Multi event exercise timer

• Back-lit LCD 4-line text display

• Multiple display languages

• Automatic start/Manual start

• Audible alarm

• Fixed and flexible LED indicators

• Event log (250)

• Engine protection

• Fault condition notification to a designated PC

• Front panel mounting

• Protected front panel programming

• Configurable alarms and timers

• Configurable start and stop timers

• Five key menu navigation

• Front panel editing with PIN protection

• 3 configurable maintenance alarms

• CAN and magnetic pick-up/Alt. sensing

• Fuel usage monitor and low fuel alarms

• Charge alternator failure alarm

• Manual speed control (on compatible CAN engines)

• Manual fuel pump control

• “Protections disabled” feature

• Reverse power protection

• Power monitoring (kW h, kV Ar, kV A h, kV Ar h)

• Load switching (load shedding and dummy load outputs)

• Automatic load transfer (DSE7420)

• Unbalanced load protection

• Independent earth fault trip

• Fully configurable via DSE Configuration Suite PC software

• Configurable display languages

• Remote SCADA monitoring via DSE Configuration Suite PC software

• AdvancedSMS messaging (additional external modem required)

• Start & stop capability via SMS messaging

• Additional display screens to help with modem diagnostics

• DSENet® expansion

• Integral PLC editor

KEY BENEFITS

• RS232, RS485 & Ethernet can be used at the same time

• DSENet® connection for system expansion

• PLC functionality

• Five step dummy load support

• Five step load shedding suppor

• High number of inputs and outputs

• Worldwide language support

• Direct USB connection to PC

• Ethernet monitoring

• USB host

• Data logging & trending
