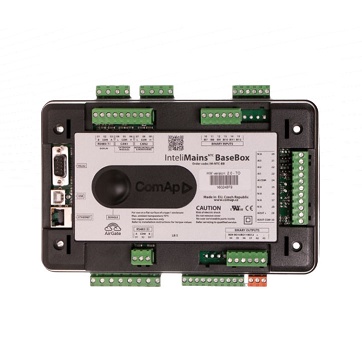

ComAp InteliMains NTC BaseBox IM-NTC-BB Mains Supervision Generator Genset Controller

Mains protection and supervision controller, compliant with the latest EU grid codes

Order code: IM-NTC-BB

ComAp InteliMains NTC BaseBox IM-NTC-BB Datasheet.pdf

Genuine ComAp InteliMains NTC BaseBox IM-NTC-BB Mains Generator Controller with wholesale price.

Features for ComAp InteliMains NT BaseBox IM-NTC-BB Genset Controller:

• For multiple (up to 31)      gen-sets operating in parallel to mains (or isolated parallel)

• To be used in conjunction with      detachable / external colour displays InteliVision 5, InteliVision 8,  InteliVision      12Touch, or InteliVision      18Touch

• Many different power control      modes available

• System       Baseload with limited export or minimal import

• Import/Export       power control of gen-set group

• Temperature       of the system by power control

• Dynamic       changes of required system power via analog input

• Reverse synchronization of the      loaded gen-set group to mains

• Forward synchronization of      Mains to gen-set group

• Coupling of several      synchronized mains to a common bus

• Allows to build complex      applications with more mains incomers, bus-tie breakers, load management      etc.

• AMF function, Peak shaving

• Mains measurement: U, I, Hz,      kW, kVAr, kVA, PF, kWh, kVAhr

• Bus measurement: U, Hz (kW,      kVAr, PF - via CAN from gen-set group)

• Selectable measurement ranges      for AC voltages and currents – 120 / 277 V, 0–1 / 0–5 A

• True RMS (TRMS) is used with      Voltage, Current and Power measurement

• Inputs and outputs configurable      for various customer needs

• 12       Binary Inputs

• 12       Binary Outputs

• 3       Analog Inputs

• 1       Analog Output

• Bipolar binary outputs -      possibility to use BO as High or Low side switch

• Many communication options –      easy remote supervising and servicing

• 1×       RS232 / 1× RS485 interface with Modbus protocol support

• Analog       / GSM / ISDN / CDMA modem communication support

• SMS       messages

• RS485       converter is isolated (one RS485 Display-dedicated port)

• AirGate       support

• Ethernet       connection (RJ45)

• USB       2.0 slave interface

• Controller redundancy

• Event-based history (up to 1000      records) with customer-selectable list of stored values

• RTC

• Statistic values

• Integrated PLC programmable      functions

• Integrated fixed and      configurable protections

• DIN-Rail mount of the      controller

• Customized firmware solution

Possible firmware applications:

• MCB      application (controller is controlling Mains Circuit Breaker and provides      import/export to Mains functions and other related features)

• MGCB      application (controller is controlling Mains Circuit Breaker and Master      Gen-set Circuit Breaker and provides import/export to Mains functions and      other related features)

• BTB      application (controller is controlling Bus Tie Breaker and provides      enhanced options for breaker control dependent on various user settings      and left and right bus parameters, full support of control groups is      included)

• FDR      application (contoller is controlling Load Circuit Breaker and provides      wide variety of functions related to load management)

• BC      application - manage up to 992 Gen-sets in Extended Multiple      Gen-set Application

NOTE: For Grid Codes compliance please use InteliMains GSC.
