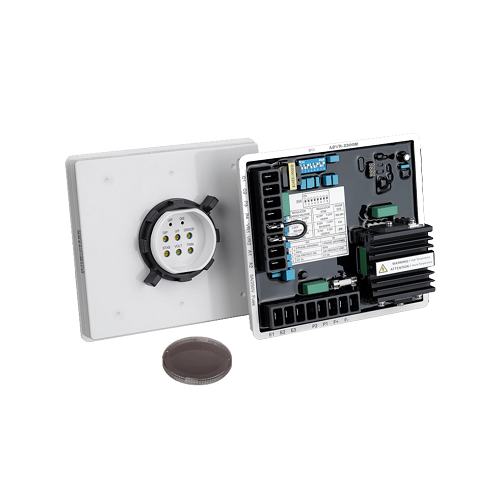

KUTAI AVR Voltage Regulator ADVR-2300M

KUTAI ADVR-2300M AVR Product Specification.pdf

KUTAI ADVR-2300M AVR Operation Manual.pdf

Brand New Original Kutai AVR made in TaiWan with wholesale price.

3.5Amp Hybrid Analog/Digital AVR for Shunt, PMG/Aux. Winding Genset

ADVR-2300M is a hybrid Analog/Digital AVR which is compatible with Marathon DVR2000 Series. This voltage regulator can be used on single/three phase sensing and Shunt/PMG/Aux.Winding. It has PF (power factor) correction inputs and the facility for droop CT connection.

* It can be used with KUTAI IVT Generator Excitation Booster to increase motor starting capacity.

* If not for use with the IVT Generator Excitation Booster, the ADVR-2100M can be used instead,and purchased at a big discount.

Specifications for ADVR-2300M KUTAI AVR:

Sensing Input Voltage 220 to 600 Vac 1 or 3 phase DIP switch setting

           Frequency 50/60 Hz DIP switch setting

Power Input Voltage 60 to 300 Vac 1 phase 2 wire

          Frequency 50 to 500 Hz

Excitation Output Voltage Continuous 125 Vdc @ power input 220 Vac

Current Continuous 3.5A Intermittent 7A for 10 seconds

               Resistance ≧ 18 ohms @ power input 110 Vac

                         ≧ 36 ohms @ power input 220 Vac

External Volts Adjustment Max. +/-5% @ 500 ohm 1 watt potentiometer

                     Max. +/-10% @ 1K ohm 1 watt potentiometer

Voltage Regulation Less than +/-0.5% (with 4% engine governing)

Build Up Voltage 5Vac 25Hz residual volts at power input terminal

Soft Start Ramp Time 4 seconds +/-10%

EMI Suppression Internal electromagnetic interference filtering

Static Power Dissipation Max. 6 watts

Burden in Shunt & PMG Wiring 550 VA @ power input 110 Vac

                          1100 VA @ power input 220 Vac

Quadrature Droop Input CT 1A or 5A > 5VA (DIP switch setting)

                    Sensitivity Max. +/-7% @ P.F +/-0.7

Analogue Input Input resistance greater than 2K ohms

             Max. Input +/-5 Vdc or +10 Vdc

             Sensitivity 1 Vdc for 2.5% Generator Volts

Voltage Thermal Drift Less than 3% at -40 to +70 °C

Physical Specifications for ADVR-2300M KUTAI Voltage Regulator:

Dimension 150.0 (L) x 135.0 (W) x 55.5 (H) mm

5.91 (L) x 5.31 (W) x 2.19 (H) inch

Weight 460 g +/-2%

1.01 lb +/-2%
